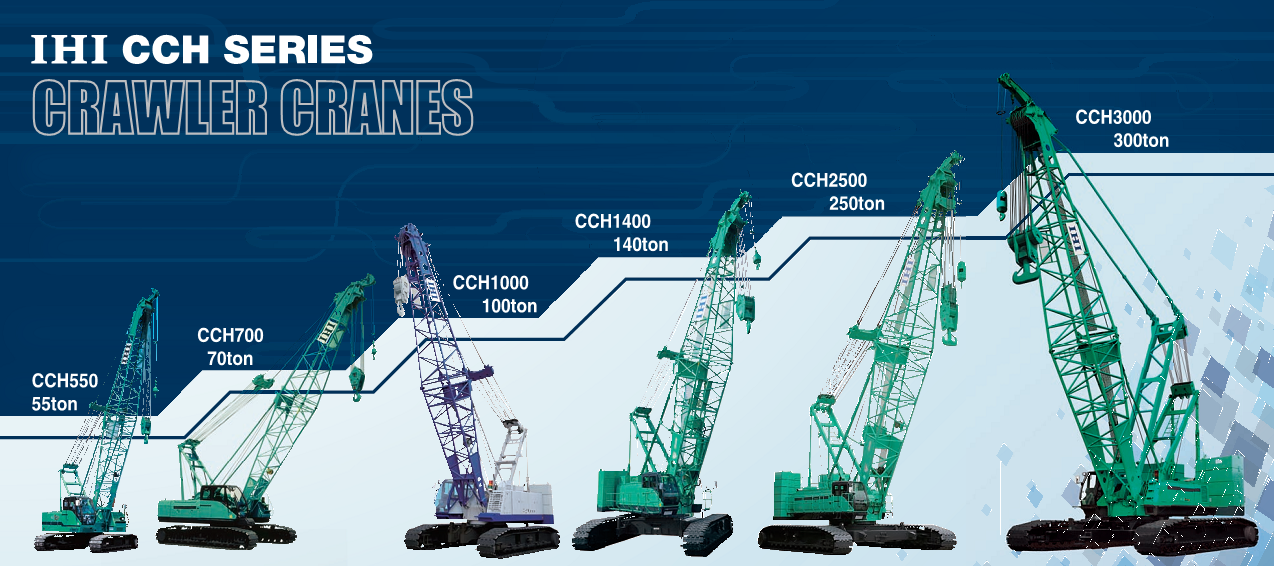

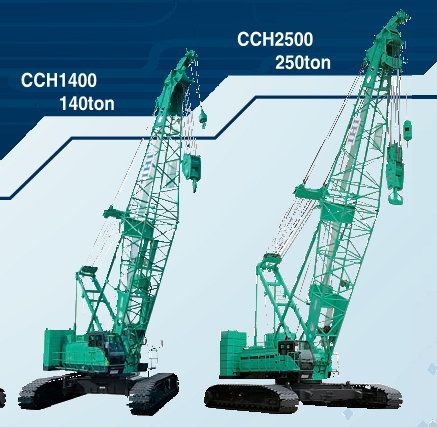

Model : CCH550T, CCH700, CCH1000-6, CCH1400-6, CCH2500-6

Bấm vào để xem thông số kỹ thuật của nhà sản xuất

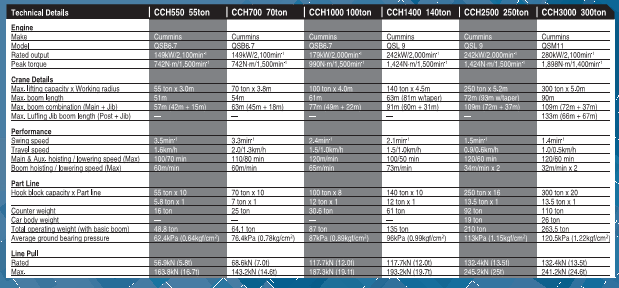

Model	Specifications
	Max. lifting capacity x Working radius (Metric ton x m)	Crane boom length (m)	Max. boom & jib combination (m)	Engine rated output [kW/min-1]
CCH550-3II	55×3.0	9 - 51	42 + 15	149/2100
CCH700	70 x 3.8	12 - 51	45 + 18	149/2100
CCH1000-6	100 X 4.0	13 - 61	49 + 22	179/2000
CCH1400-6	140 X 4.5	15 - 63	60 + 31	242/2000
CCH2500-6	250 x 5.2	18 - 93	72 + 37	242/2000
CCH3000	300 x 5.0	18 - 90	72 + 37	280/2100





Crawler Cranes (Luffing Tower/Luffing Jib)
Model	Specifications
	Max. lifting capacity (Metric ton)	Max. tower post & jib combination (m)	Engine rated output [kW/min-1]
CCH700(LT)	13(x12m)	42 + 31	149/2100
CCH1000-6(LT)	15(x14m)	44.5+37	179/2000
CCH1400-6(LT)	35(x8m)	54.4+47	242/2000
CCH2500-6(LT)	35(x10m)	62+51	242/2000
CCH3000(LJ)	90(x10.1m)	66+67	280/2100



Telescopic Crawler Crane
Model	Specifications
	Max. lifting capacity (Metric ton)	Crane boom length (m)	Engine rated output [kW/min-1]
CCH550T	55	11.3 - 34.4	175/2100
CCH550T-3	55	11.3 - 34.4	179/2000

------------
